Description

The EJE M15 is a cost-effective entry into the Jungheinrich electric pallet truck segment. The electric drive facilitates work during transport and storage of pallets. The electric pallet truck is particularly suitable for small and medium-sized companies, as a replacement for the hand-held truck or as a supplement to your vehicle fleet.

. Extremely agile thanks to compact dimensions
. Support wheels for excellent driving and cornering stability
. Powerful and economical thanks to three-phase motor
. Maintenance-free Li-Ion battery with integrated charger
. Retraction rollers for easy pallets

The Jungheinrich EJE M15 electric low-lift truck offers an optimal price-performance ratio for in-company goods traffic

The EJE M15 has been specially developed for use in small and medium-sized companies with an occasional demand for goods transports. The 0.6 kW powerful driving motor assists you when transporting pallets and goods up to 1500 kg over short distances.

With the ergonomically designed handlebar handle, which can be operated on both sides, you can easily control all functions. All important control instruments such as the battery indicator, operating hours counter, emergency stop switch and key are arranged centrally and are located directly in your field of view. The low drawbar reduces the effort required for steering.

The vehicle is completely covered for safe operation. Because of the low ground clearance of only 35 mm, the risk of injuries in the foot area is significantly minimized.

Thanks to its compact design and the low front length of only 435 mm, the EJE M15 offers maximum manoeuvrability and allows you to use safely even in confined spaces. You always have an optimal view of the fork tips. Two spring-loaded support rollers ensure a safe ride and optimal cornering stability.

The maintenance-free and powerful three-phase current technology reduces your operating costs and creates the best conditions for a fast and cost-efficient handling of goods. The 0.6 kW powerful driving motor offers a pleasant and speedy acceleration with excellent driving behavior. For an economical energy management, the regenerative brake also provides an energy recovery when the driving speed is reduced.

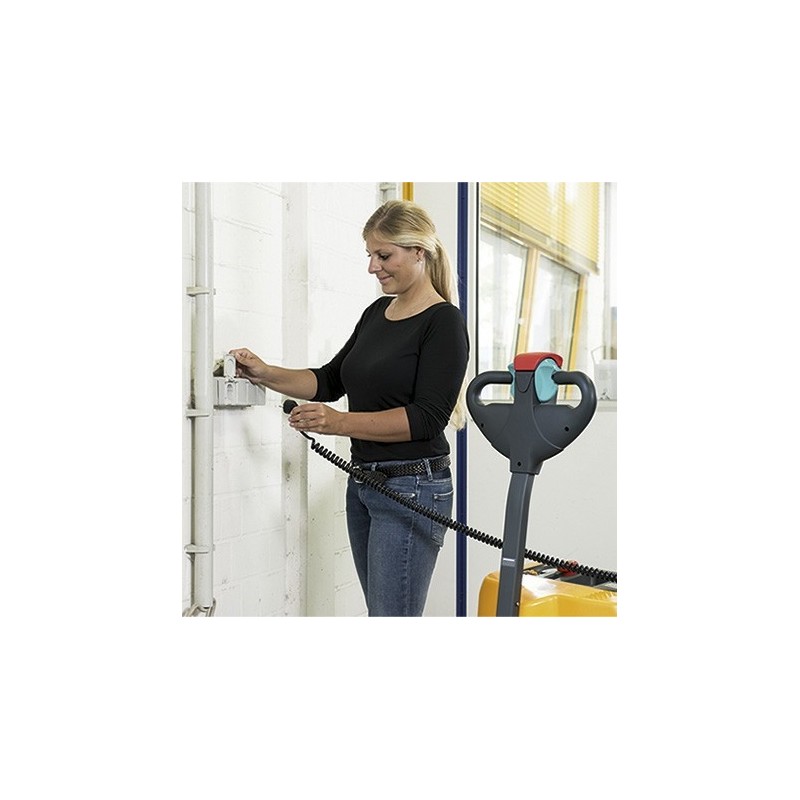

The vehicle switches off automatically after 30 minutes without use. With this intelligent automatic switch-off, the battery is protected. The maintenance-free Li-Ion battery, together with the integrated charger, allows a flexible insert and can be easily charged to any 230 V socket. Annoying refilling of water is completely unnecessary.

Take advantage of the cost-effective entry into the Jungheinrich electric pallet truck segment and order the EJE M15 here in our shop.

Manufacturer
Jungheinrich
Model
EJE M15 Li
Drive mode
Pedestrian
Load capacity / rated load
1500 kg
Load centre distance
600 mm
Load distance
914 mm
Wheelbase
1212 mm
Net weight incl battery
219 kg
Axle load with load front/rear
700 / 1019 kg
Axle load without load front / rear
166 / 53 kg
Tyres
Polyurethane
Load wheels type
Single / Tandem
Number of front / rear wheels
1x + 2 / 4
Steering / drive tyres size
Ø 230 x 65
Load tyres size
Ø 80 x 70
Steering / drive wheel material
Nylon
Load wheels material
Polyurethane / Nylon
Tread width, front
460 mm
Tread width, rear
368 mm
Lift
205 mm
Height, lowered
85 mm
Height of tiller in drive position min / max
740 / 1190 mm
Overall lenght
1585 mm
Length to face of forks
435 mm
Overall width
650 mm
Fork dimensions
55 / 172 /1150 mm
Width across forks
540 mm
Ground clearance centre of wheelbase
35 mm
Aisle width (pallet 1000×1200 sideways)
1643 mm
Aisle width (pallet 800x1200 length)
1843 mm
Turning radius
1357 mm
Travel speed, laden / unladen
4.5 / 5 km/h
Lift speed, laden / unladen
0.05 / 0.06 m/s
Lowering speed, laden / unladen
0.08 / 0.04 m/s
Max. gradeability laden / unladen
4 / 10 %
Service break
electric
Drive motor rating
0,6 kW
Lift motor rating
1,2 kW
Battery according to DIN 43531/35/36
DIN 43531 /35/36
Battery voltage / nominal capacity
25.6 V / 50 Ah
Battery weight
15 kg
Energy consumption according to VDI cycle
0.27 kWh/h
Sound pressure level at operator's ear as per EN 12053
66 dB (A)
Battery type
Li-ion
  • Electric pedestrian truck Jungheinrich EJE M15 Li-Ion, capacity 1500 kg

    • Extremely agile thanks to compact dimensions
    • Support wheels for outstanding travel and cornering stability
    • Powerful and efficient thanks to three-phase AC drive motor

    Lei20,084.06
    Tax excluded
    €3,990.00
    51825335
    Status: Out of stock
