Description

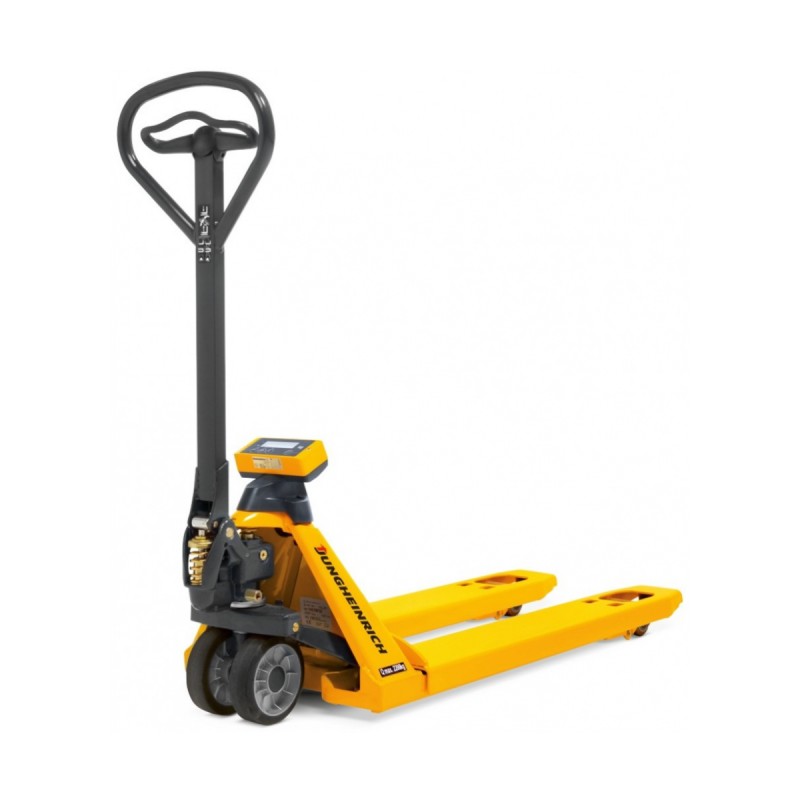

The AMW 22 hand pallet truck is a mobile weighing system for warehouses, production and dispatch.

Wherever goods need to be weighed and transported, their ability to take the 'scales to the goods' makes these trucks the perfect solution.

For example, the basic AMW 22 model is appropriate for any area of application, offering efficient and precise weighing with its 4 weighing cell technology. A 1 kg incremental display and max. 0.1% deviation from the measuring range is the correct solution for many applications.

 Easy to operate

The easy to operate handle is suitable for both left and right-handers. The special lowering valve enables loads to be lowered precisely. The standard fast lift (up to 120 kg) ensures that Euro pallets can be lifted clear of the floor with only 3 pump strokes. Maximum lift height is achieved in only 5 pump strokes.

 Maximum precision

The weighing cells are positioned at the four end points of the forks and ensure extremely precise weight recording up to a slanting position of 2°.

 Thoroughly robust

Maximum stability is achieved through the well proven fork construction. Electronics and display are protected against dust and water (protection class IP 65).

 Application-specific configuration

Two different models of the pallet truck with weighing device are available to ensure an application-specific, cost effective solution for every application.

 Performance characteristics of the AMW 22:

• 2200 kg weighing capacity.

• Fast lift.

• 1 kg display increments across the entire measuring range up to 2200 kg.

• Maximum 0.1% deviation from measuring range.

• Protected against moisture and dust (IP 65 rating).

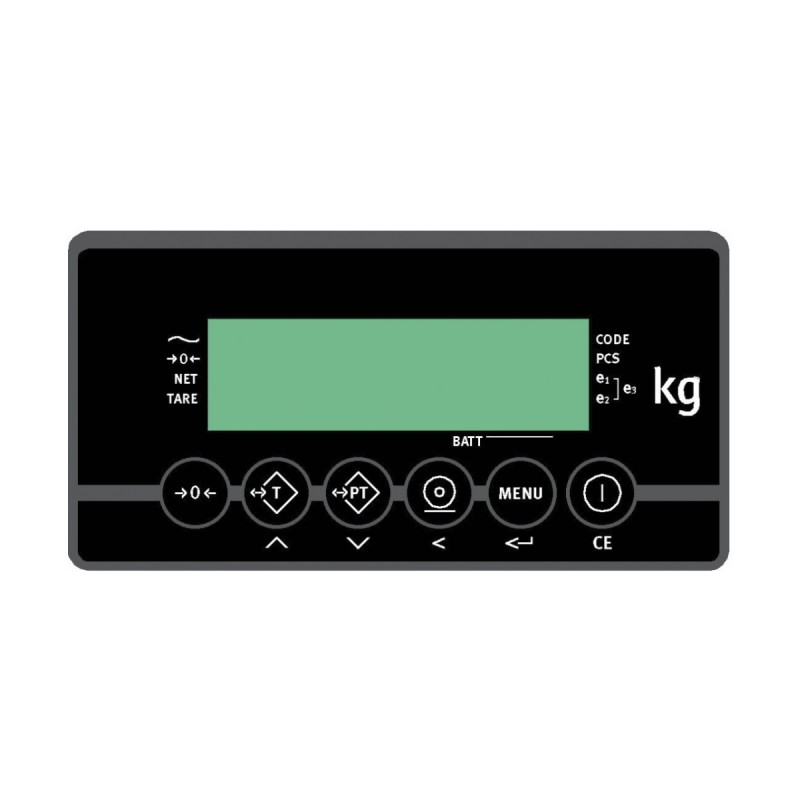

• Automatic zero adjustment, also via keypad.

• Taring over the full weighing range.

• Addition memory and number of weighing processes.

• Power supply from 4 x AA / 1.5 volt batteries sufficient for approx. 1700 weighing processes.

• Automatic shutdown if not used for 3 minutes.

Manufacturer
Jungheinrich
Model
AMW 22
Drive mode
Pedestrian
Operation mode
Manual
Load capacity / rated load
2200 kg
Load centre distance
600 mm
Wheelbase
1110 mm
Axle load with load front/rear
578 / 1721 kg
Axle load without load front / rear
61 / 38 kg
Service weight
99 kg
Tyres
Polyurethane
Load wheels type
Single
Number of front / rear wheels
2 / 2 or 2 / 4
Steering / drive tyres size
Ø 170 x 50
Load tyres size
Ø 82 x 96
Steering / drive wheel material
Rubber / Polyurethane / Nylon
Load wheels material
Polyurethane / Nylon
Tread width, front
109 mm
Tread width, rear
370 mm
Lift
208 mm
Height, lowered
86 mm
Height of tiller in drive position min / max
1234 mm
Overall lenght
1546 mm
Length to face of forks
396 mm
Overall width
520 mm
Fork dimensions
53 / 150 / 1150 mm
Width across forks
540 mm
Ground clearance centre of wheelbase
24 mm
Aisle width (pallet 1000×1200 sideways)
1763 mm
Aisle width (pallet 800x1200 length)
1813 mm
Turning radius
1303 mm
Lowering speed, laden / unladen
0.09 / 0.02 m/s
Lift truck material
steel
Grease nipple
yes

Hand pallet truck with weighing system Jungheinrich AMW22, capacity 2200 kg, forks length 1150 mm

Efficient and precise weighing system with premium Jungheinrich quality

  • 0 – 2,200 kg measuring range
  • 1 kg display increments across the entire measuring range
  • Max. 0.1% deviation from measuring range

Lei11,023.58
Tax excluded
€2,190.00
51060951
Status: Out of stock
