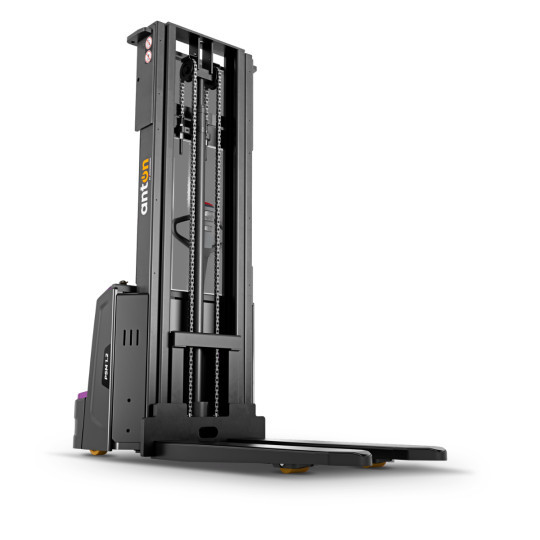

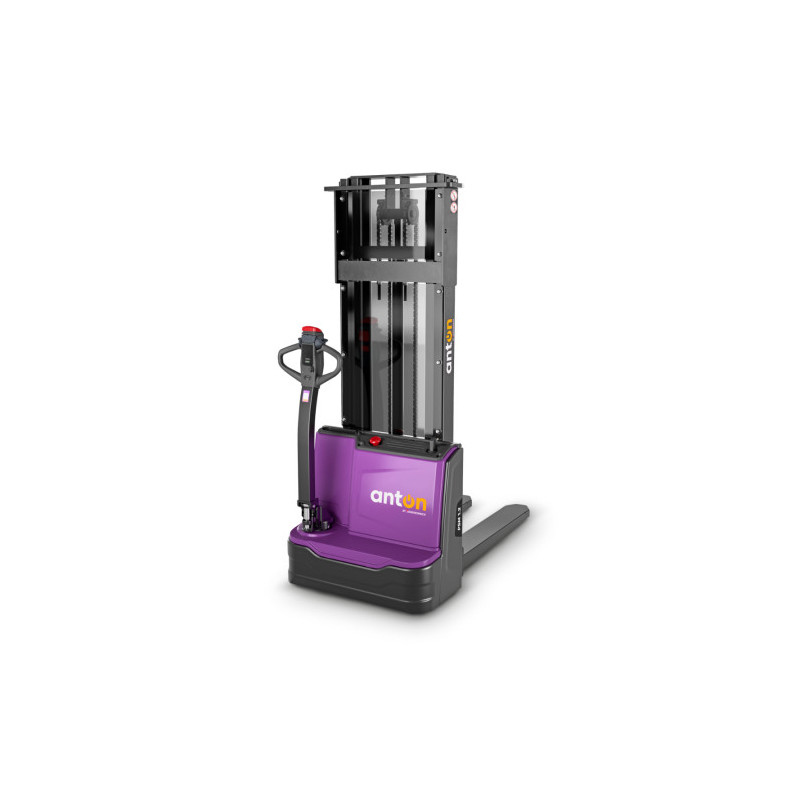

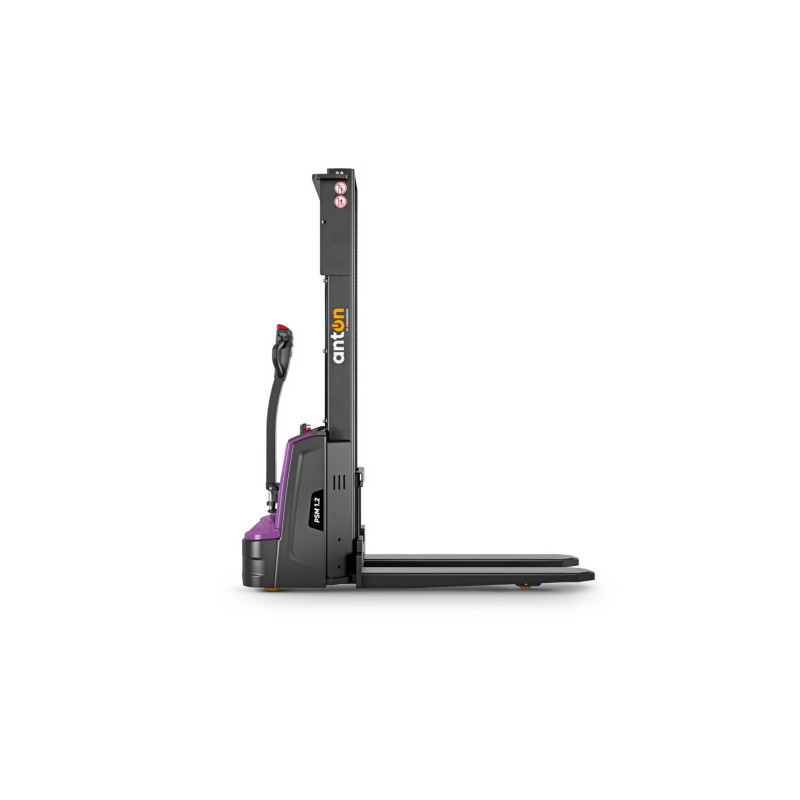

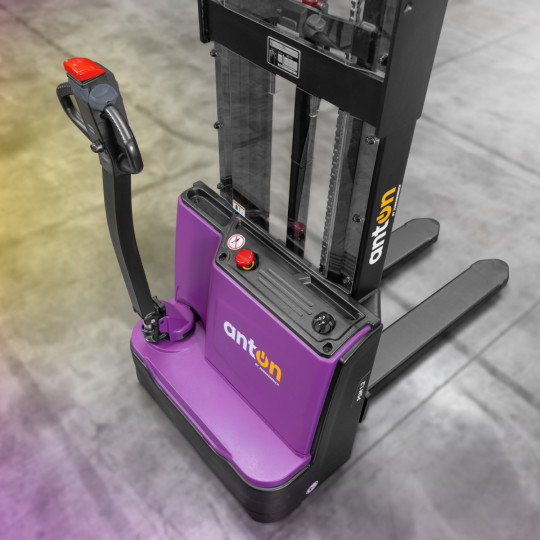

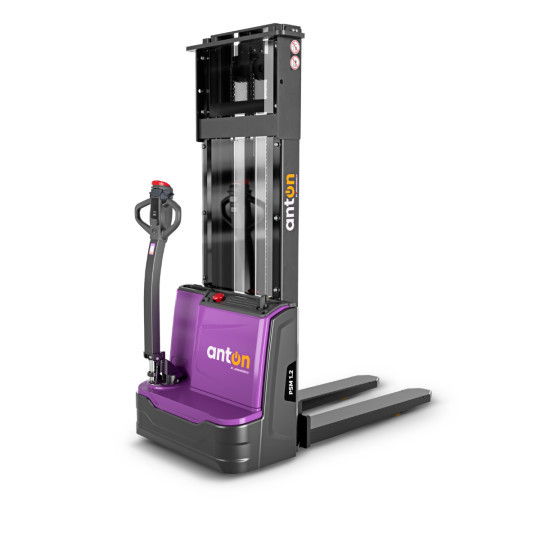

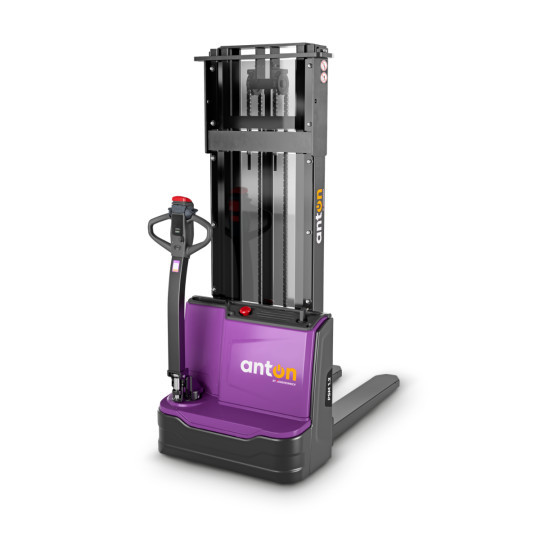

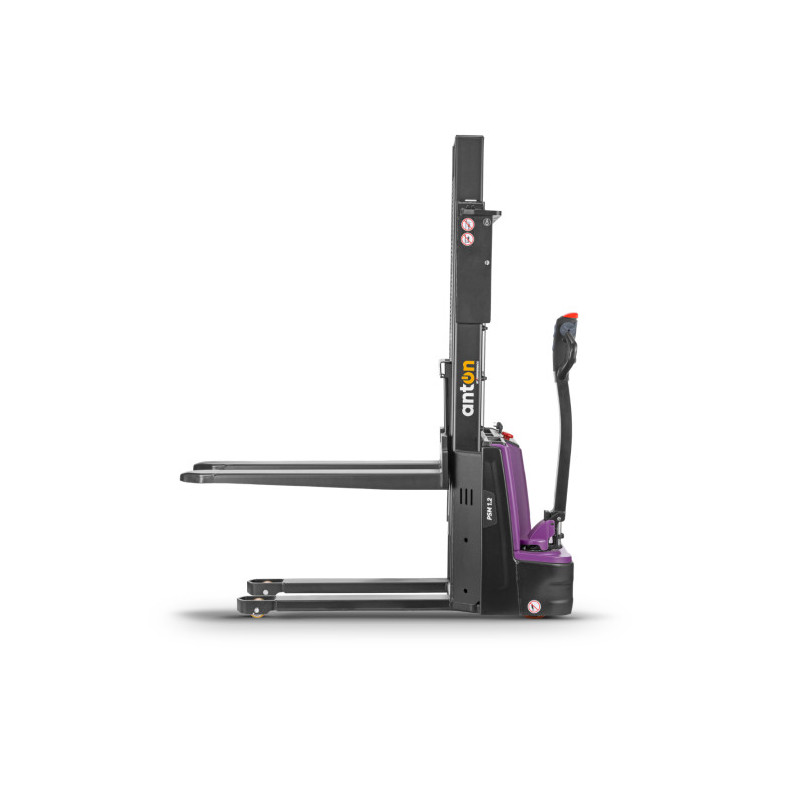

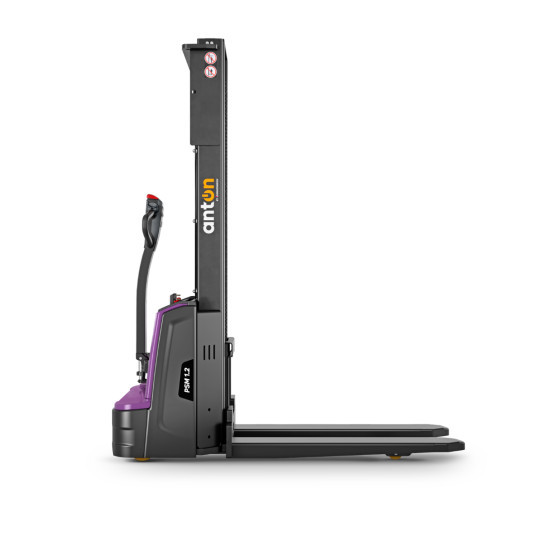

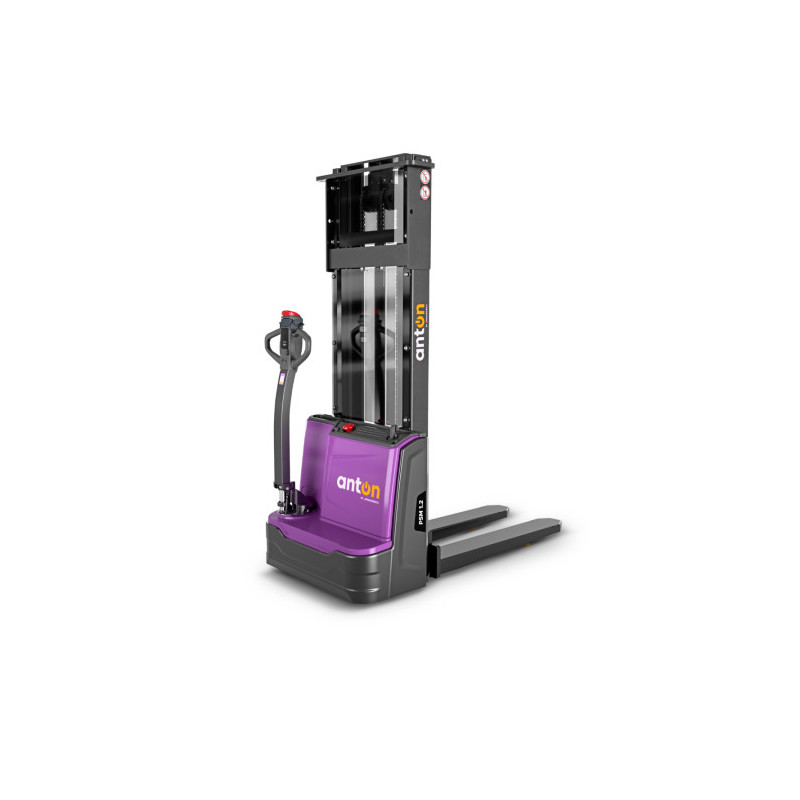

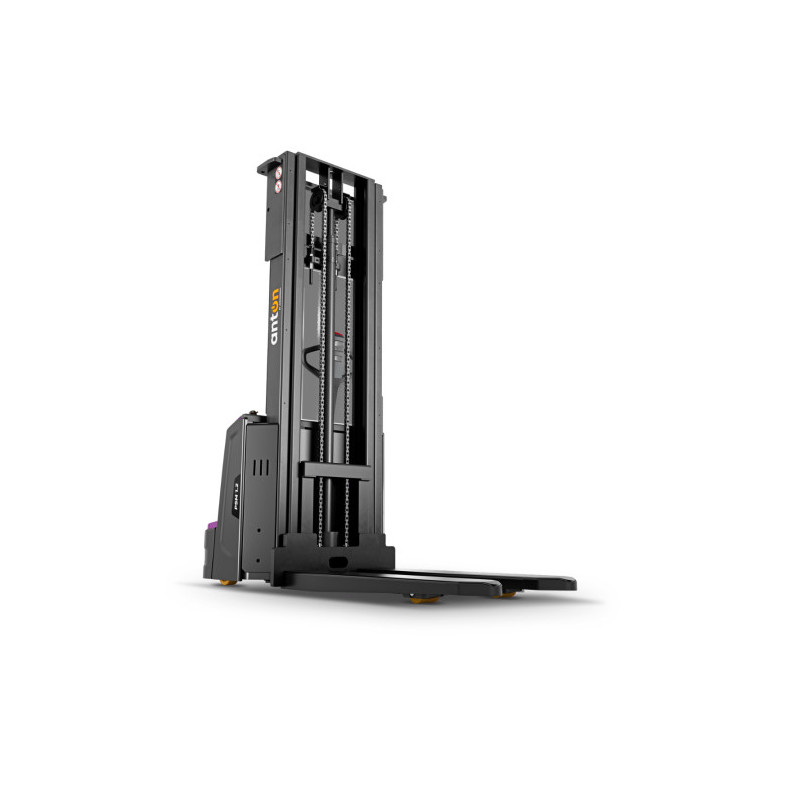

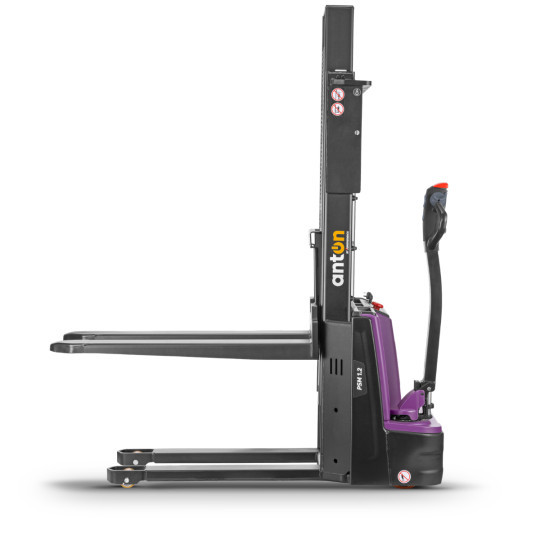

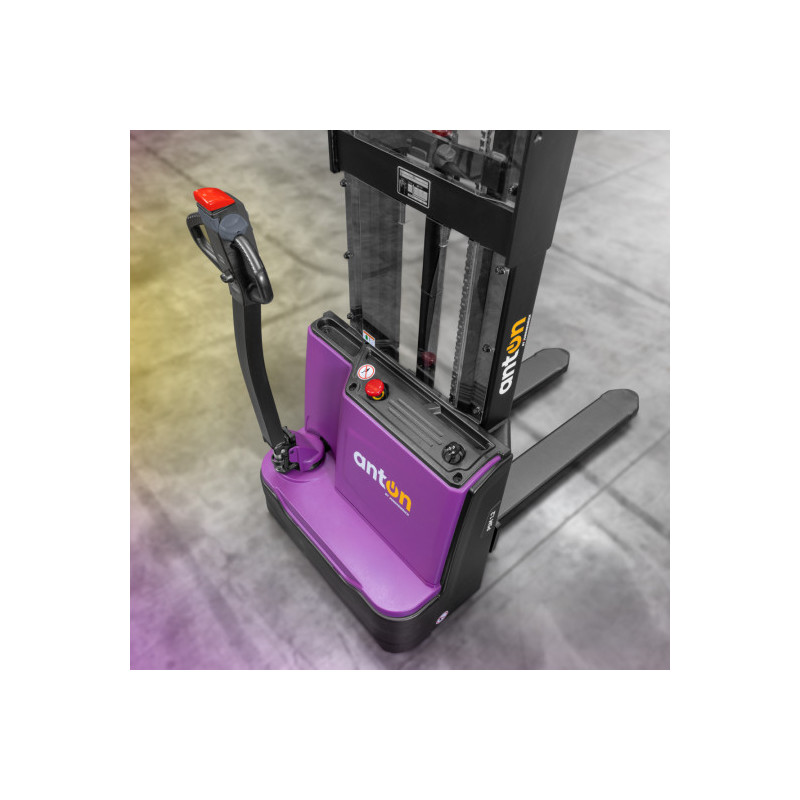

Electric pedestrian pallet stacker AntOn by Jungheinrich PSM 1.2

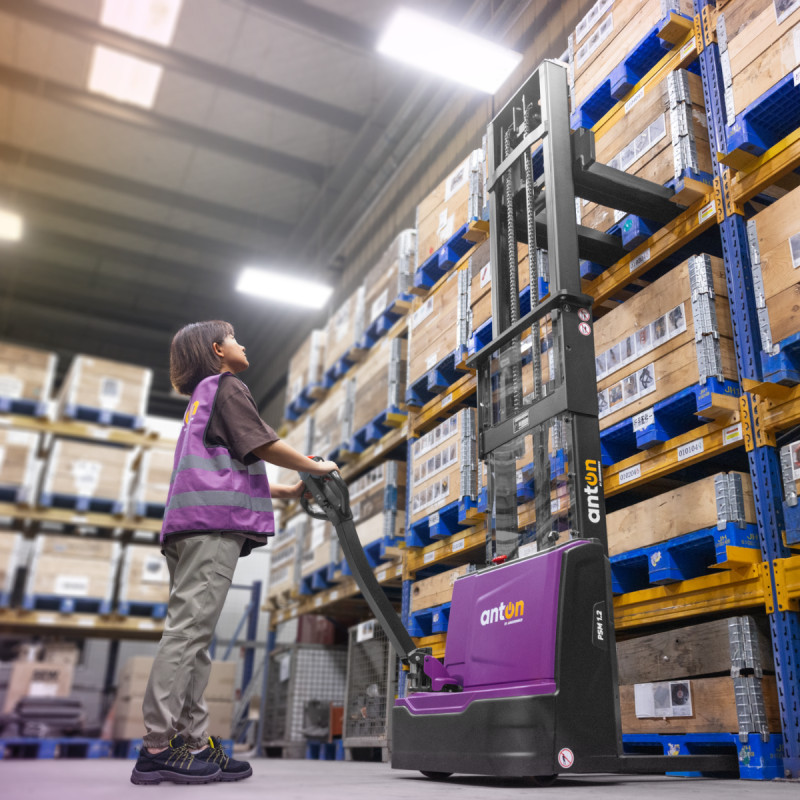

The AntOn by Jungheinrich PSM 1.2 is a compact electric pedestrian stacker designed for simple transport and stacking tasks in warehouses, production areas and retail environments. It combines user-friendly operation, stable performance and cost-efficient entry-level positioning.

With a load capacity of 1200 kg and lift heights up to 3530 mm, it handles pallets in medium-height storage locations while maintaining high stability and safe operation in narrow aisles.

The stacker is equipped with a maintenance-free lithium-ion battery (24 V / 40 Ah) and an integrated onboard charger, enabling flexible charging at standard outlets without battery change.

Designed as an entry-level solution, the PSM 1.2 focuses on essential performance for occasional use and light-duty applications, offering reliable handling, good ergonomics and efficient operation without unnecessary complexity.

Key features

• Load capacity: 1200 kg
• Lift height: 2430 / 2930 / 3530 mm
• Fork length: 1150 mm
• Battery: 24 V / 40 Ah Li-ion
• Travel speed: 4 / 4.5 km/h
• Turning radius: 1460 mm

Versatile and compact operation

• PSM 1.2 is designed for short-distance transport and stacking operations in warehouses, production, and retail environments, efficiently supporting goods handling, shelf replenishment, and order picking.
• Its compact construction (L2 = 583 mm) and tight turning radius enable operation in very narrow aisles, making it suitable for confined warehouse environments.

Ergonomic and safe handling

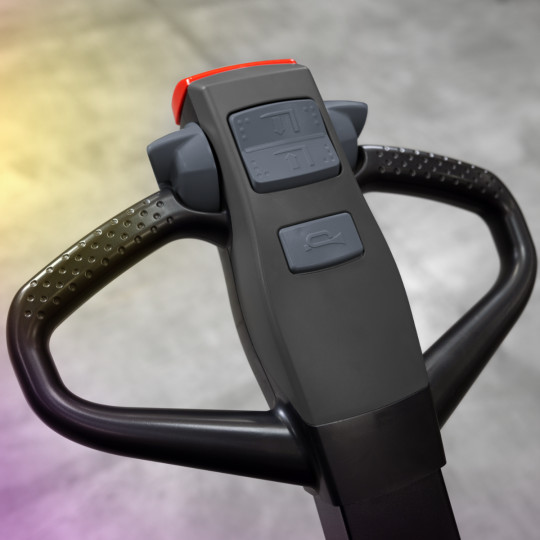

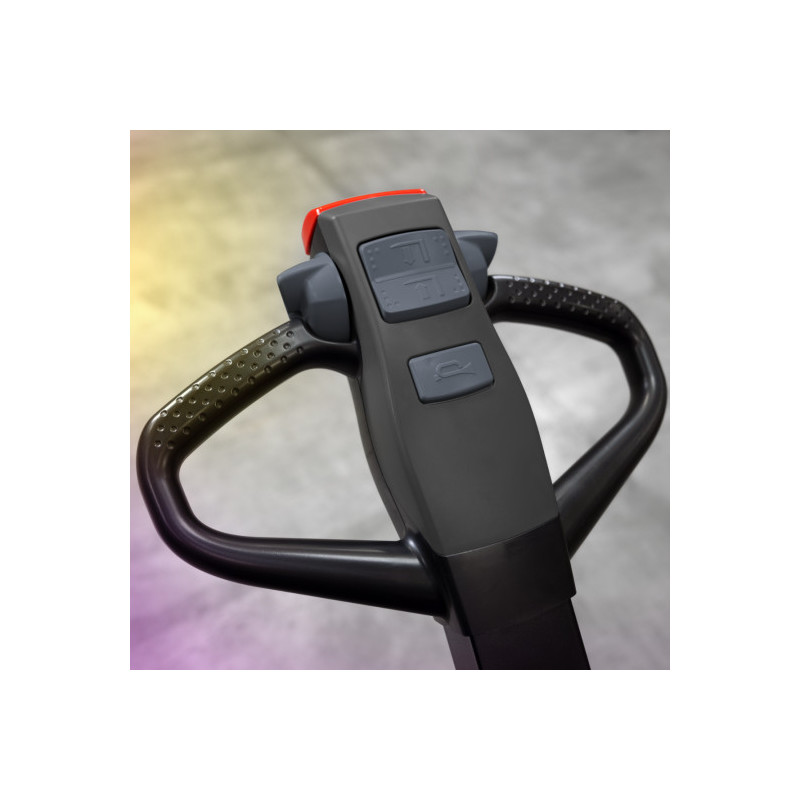

• Clearly arranged controls on tiller head
• Body protection button for operator safety
• Speed reduction at raised lift height
• Optimized tiller grip for steering

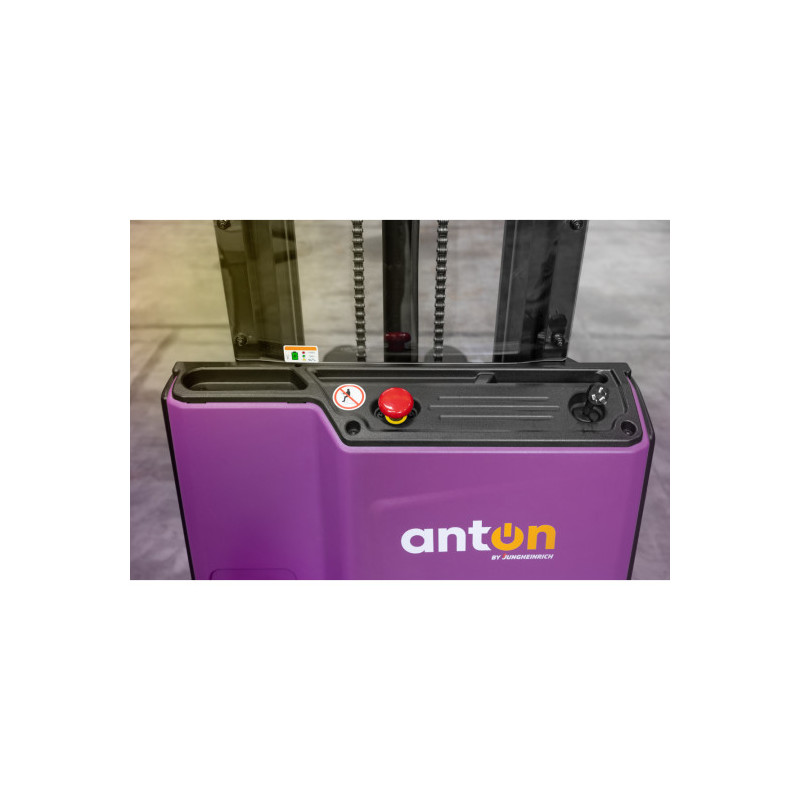

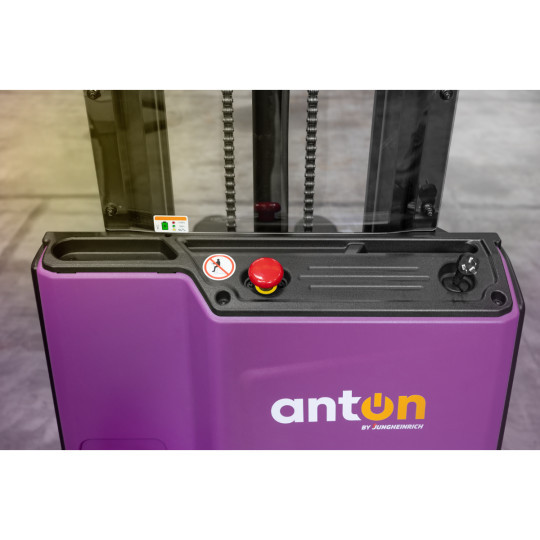

• Plexiglass panel for finger protection with mast visibility

This allows safe and intuitive operation even for inexperienced users.

Lithium-ion battery and charging

• 40 Ah Li-ion battery
• Integrated 15A onboard charger
• Opportunity charging possible at standard sockets
• Automatic drive inhibition during charging

This ensures high availability and flexible charging without battery replacement.

Performance and efficiency

• Controlled travel speed reduces damage risk
• Reliable lifting performance for basic applications
• Designed for flat warehouse environments

The stacker is optimized for cost-efficient operation in light-duty conditions.
