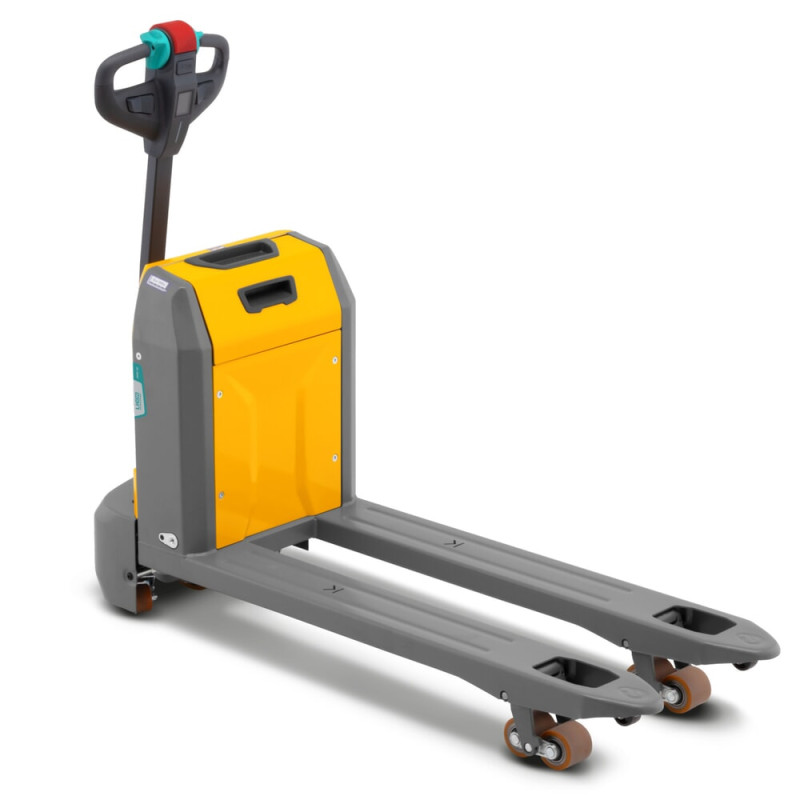

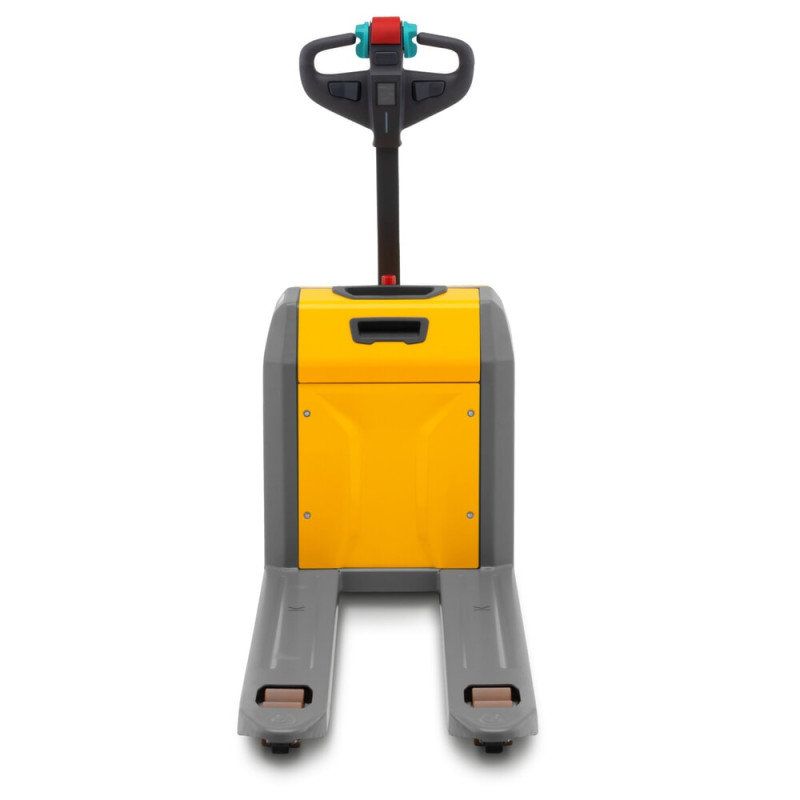

Electric pedestrian truck Jungheinrich AME 18 Li-Ion, capacity 1800 kg
Electric pedestrian truck Jungheinrich AME 18 Li-Ion, capacity 1800 kg
Electric pedestrian truck Jungheinrich AME 18 Li-Ion, capacity 1800 kg
Electric pedestrian truck Jungheinrich AME 18 Li-Ion, capacity 1800 kg
Electric pedestrian truck Jungheinrich AME 18 Li-Ion, capacity 1800 kg
Electric pedestrian truck Jungheinrich AME 18 Li-Ion, capacity 1800 kg
Electric pedestrian truck Jungheinrich AME 18 Li-Ion, capacity 1800 kg
Electric pedestrian truck Jungheinrich AME 18 Li-Ion, capacity 1800 kg
Electric pedestrian truck Jungheinrich AME 18 Li-Ion, capacity 1800 kg
Electric pedestrian truck Jungheinrich AME 18 Li-Ion, capacity 1800 kg
Electric pedestrian truck Jungheinrich AME 18 Li-Ion, capacity 1800 kg
Electric pedestrian truck Jungheinrich AME 18 Li-Ion, capacity 1800 kg
Electric pedestrian truck Jungheinrich AME 18 Li-Ion, capacity 1800 kg
Electric pedestrian truck Jungheinrich AME 18 Li-Ion, capacity 1800 kg

Description

The Jungheinrich AME 18 electric pallet truck is designed for flexible use in warehouses, on ramps or directly in vehicles. With a low weight of up to 158 kg and various fork lengths of up to 1,150 mm, it offers an optimal balance of performance, manoeuvrability and stability. The reinforced steel construction combined with protected, sprung support wheels ensures utmost stability – even when loaded. Precise control of the drive system enables precise and safe manoeuvring in tight spaces. This is facilitated by a practical slow travel button, which allows especially precise manoeuvres – for example when entering narrow aisles or vehicles. The lithium-ion battery of the AME 18 is not only maintenance-free but can also be easily charged via the supplied battery charger at any standard socket. This means intermediate charging is possible at any time. An integrated battery management system reliably protects against overcharging or deep discharge. At the same time, automatic shutdown during inactivity helps to save energy. Intuitive operation via an ergonomic tiller with one-handed operation on either side, combined with a clearly visible LED truck status display, ensures maximum convenience in daily use. Two travel programmes allow for either fast or precision travel, depending on the situation. Additional features such as fork marking for precise transverse pick-up, tandem fork rollers and protected entry rollers support safe and fast pallet handling. Operational safety is further enhanced by PIN code access, ensuring that only authorised personnel can operate the device. The AME 18 is available with both single rollers and tandem rollers. Single rollers are especially suitable for flat floors and short distances. Tandem rollers, however, offer advantages on uneven surfaces, ramps or when transporting across thresholds, as they distribute the weight more evenly and ensure smoother running. Depending on the operating environment, the pallet truck can be optimally configured to maximise both handling comfort and durability. Whether in retail, production or logistics, the reliable Jungheinrich AME 18 impresses with intelligent technology, economical operation and maximum flexibility. It meets all requirements for a modern electric pallet truck designed for weight- and space-sensitive work environments.

Manufacturer
Jungheinrich
Model
AME 18
Drive mode
Electric
Operation mode
Pedestrian
Load capacity / rated load
1800 kg
Load centre distance
600 mm
Net weight incl battery
158 kg
Steering / drive wheel material
Polyurethane
Lift
115 mm
Lifting range
80 - 115 mm
Height of tiller in drive position min / max
700 / 1190 mm
Overall lenght
1550 mm
Length to face of forks
400 mm
Fork dimensions
53 / 160 / 1150 mm
Ground clearance centre of wheelbase
27 mm
Aisle width (pallet 800x1200 length)
2060 mm
Turning radius
1389 mm
Travel speed, laden / unladen
5 / 5,5 km/h
Lift speed, laden / unladen
0,03 / 0,04 m/s
Lowering speed, laden / unladen
0.06 / 0.05 m/s
Max. gradeability laden / unladen
8 / 20 %
Drive motor rating
1.0 kW
Lift motor rating
0,8 kW
Battery voltage / nominal capacity
48 V / 25 Ah
Sound pressure level at operator's ear as per EN 12053
70 dB (A)
Battery type
Li-ion
  • NEW
  • NEW
  • Electric pedestrian truck Jungheinrich AME 18 Li-Ion, capacity 1800 kg

    • Load capacity of 1,800 kg

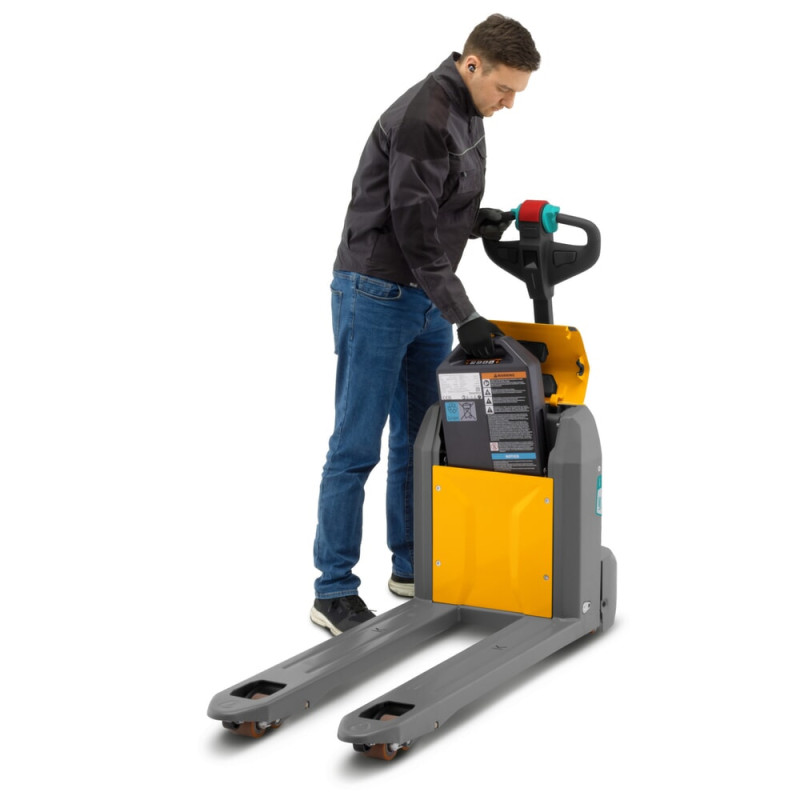

    • Energy efficient thanks to maintenance-free lithium-ion battery
    • Slow travel button for precise manoeuvring
    • High safety thanks to precision handling and stable cornering
    • Protected access via PIN code entry

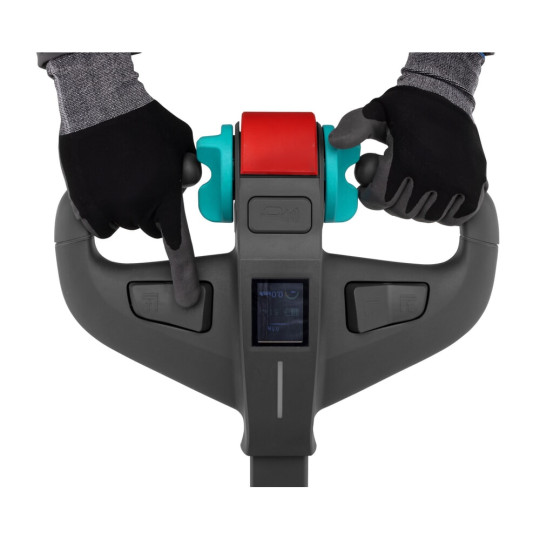

    • Double-sided, ergonomic operation with either hand
    • Automatic shutdown when not in use
    • Fork marking at 800 mm for transverse pallet pick-up
    • Fork length : 1150 mm

    Lei15,941.62
    Tax excluded
    €3,090.00
    52514974
    Status: In stock
