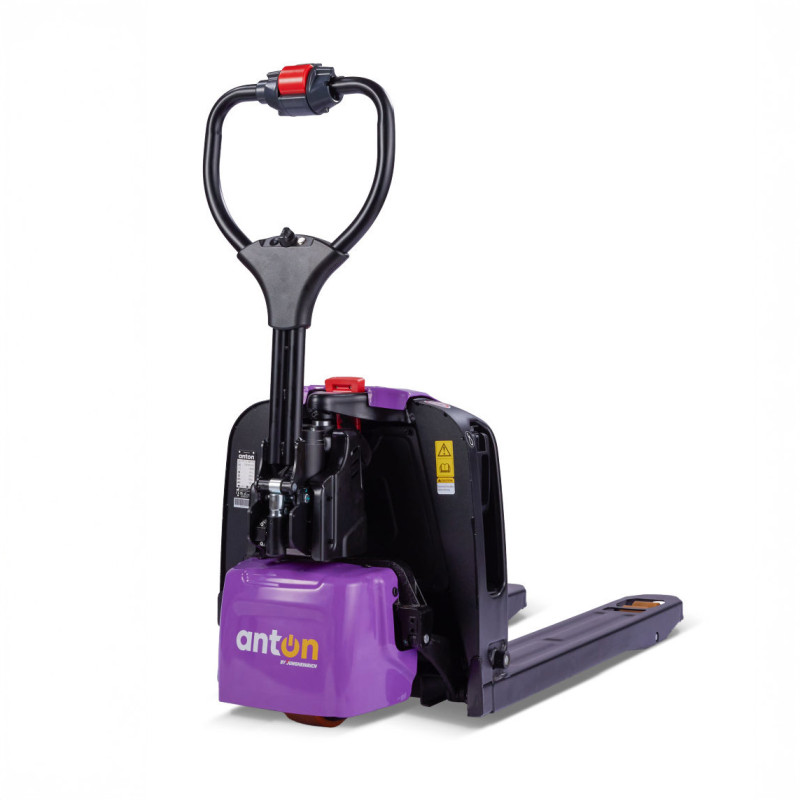

Electric pedestrian pallet truck | PTL 1.5 | 685 x 1150 mm | AntOn by Jungheinrich
Electric pedestrian pallet truck | PTL 1.5 | 685 x 1150 mm | AntOn by Jungheinrich
Electric pedestrian pallet truck | PTL 1.5 | 685 x 1150 mm | AntOn by Jungheinrich
Electric pedestrian pallet truck | PTL 1.5 | 685 x 1150 mm | AntOn by Jungheinrich
Electric pedestrian pallet truck | PTL 1.5 | 685 x 1150 mm | AntOn by Jungheinrich
Electric pedestrian pallet truck | PTL 1.5 | 685 x 1150 mm | AntOn by Jungheinrich
Electric pedestrian pallet truck | PTL 1.5 | 685 x 1150 mm | AntOn by Jungheinrich
Electric pedestrian pallet truck | PTL 1.5 | 685 x 1150 mm | AntOn by Jungheinrich
Electric pedestrian pallet truck | PTL 1.5 | 685 x 1150 mm | AntOn by Jungheinrich
Electric pedestrian pallet truck | PTL 1.5 | 685 x 1150 mm | AntOn by Jungheinrich
Electric pedestrian pallet truck | PTL 1.5 | 685 x 1150 mm | AntOn by Jungheinrich
Electric pedestrian pallet truck | PTL 1.5 | 685 x 1150 mm | AntOn by Jungheinrich
Electric pedestrian pallet truck | PTL 1.5 | 685 x 1150 mm | AntOn by Jungheinrich
Electric pedestrian pallet truck | PTL 1.5 | 685 x 1150 mm | AntOn by Jungheinrich
Electric pedestrian pallet truck | PTL 1.5 | 685 x 1150 mm | AntOn by Jungheinrich
Electric pedestrian pallet truck | PTL 1.5 | 685 x 1150 mm | AntOn by Jungheinrich
Electric pedestrian pallet truck | PTL 1.5 | 685 x 1150 mm | AntOn by Jungheinrich
Electric pedestrian pallet truck | PTL 1.5 | 685 x 1150 mm | AntOn by Jungheinrich

Description

Ideal for use in warehouses, outdoors or on HGVs.

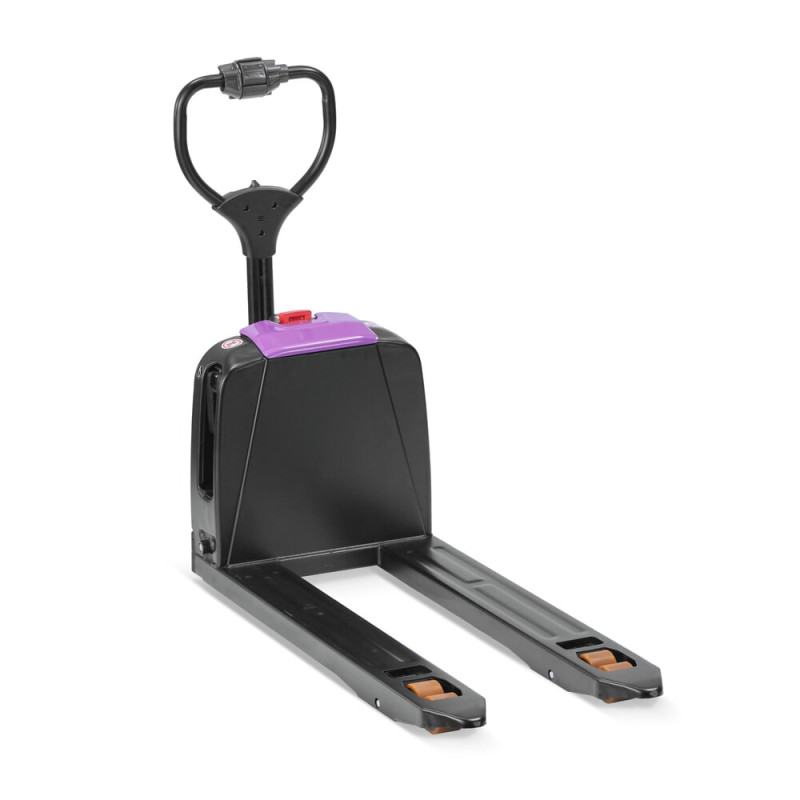

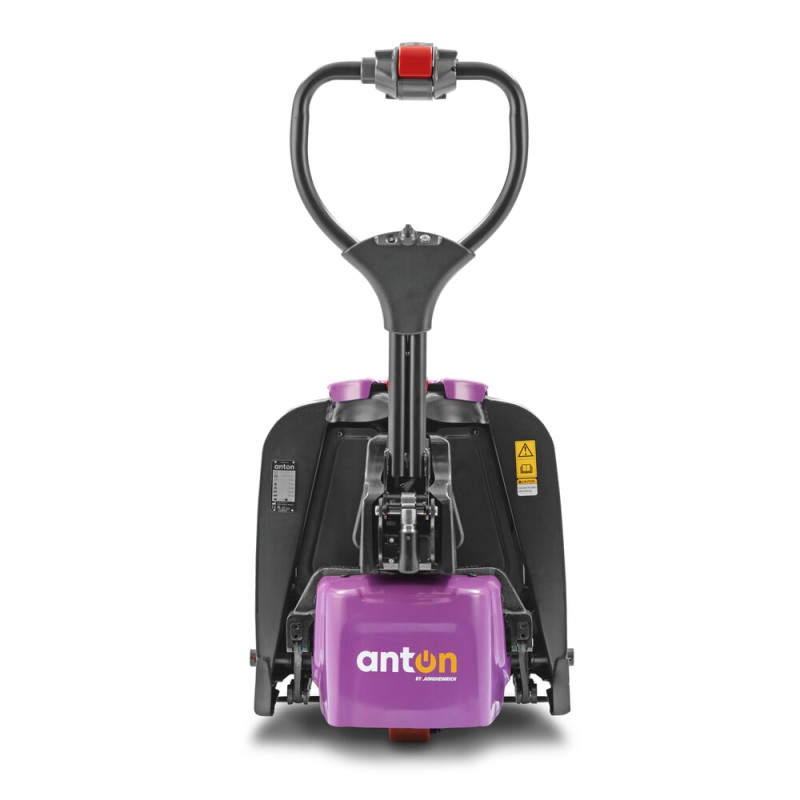

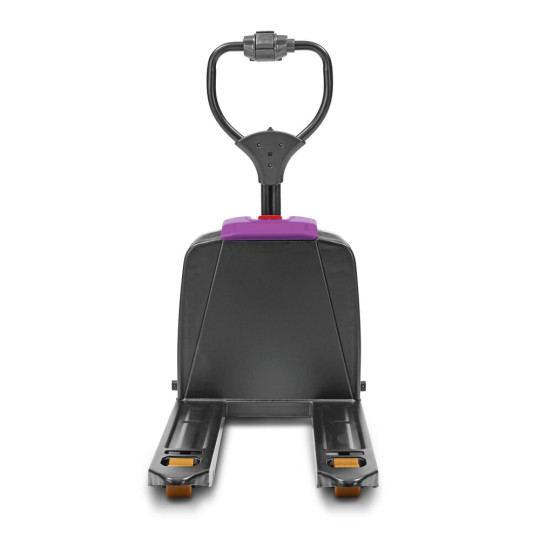

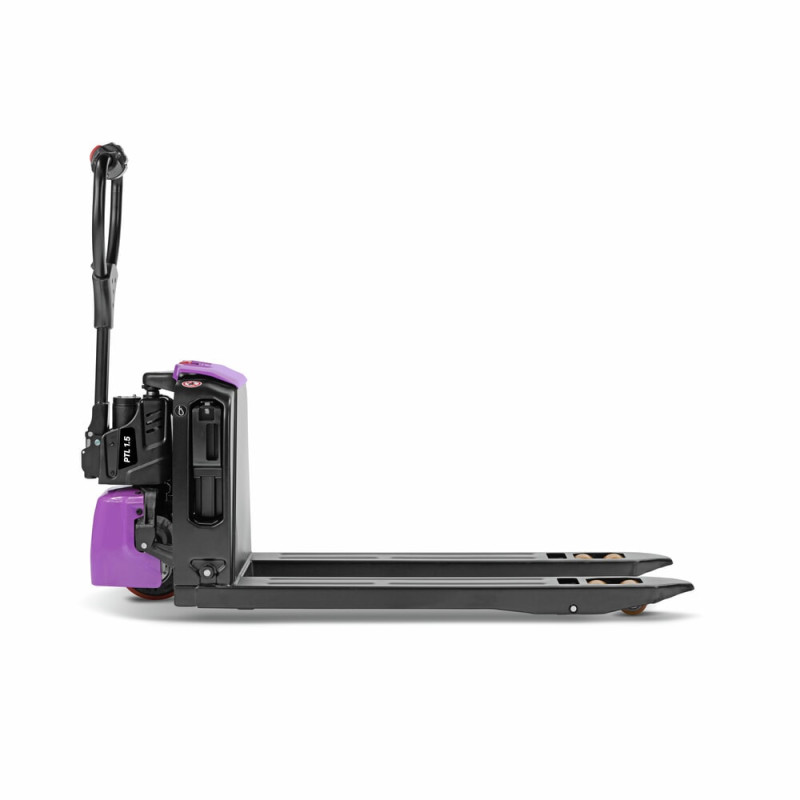

The AntOn by Jungheinrich PTL 1.5 is an entry-level model that has everything you need for your daily work – the electric pallet truck is compact and easy to operate. In the warehouse, at the shop or on the HGV: the PTL 1.5 adapts flexibly to a wide range of tasks – doing exactly what you expect of it.

Equipped with modern lithium-ion technology, well-thought-out functions and selectable fork lengths, it will swiftly become a reliable all-rounder. If you require longer operating times, the PTL 1.5 can be equipped with a second removable battery for additional power.

Designed for robust and reliable daily operation, it impresses with both its performance and its short delivery times. And all this at a price that makes it a smart choice for every situation – whether for newcomers or as an addition to your existing fleet.

Versatile One truck for every task – maximum flexibility.

  • The perfect addition for various transport jobs with different fork widths.
  • Equipment options for special requirements: stabilising wheels for more safety over uneven ground. Second battery socket for greater availability.
  • Compact design – ideal for use on HGVs and precise manoeuvring in confined spaces.

Straightforward Built for function and simplicity.

  • Easy to use and handle – suitable for all staff.
  • External charger for rapid booster charging.

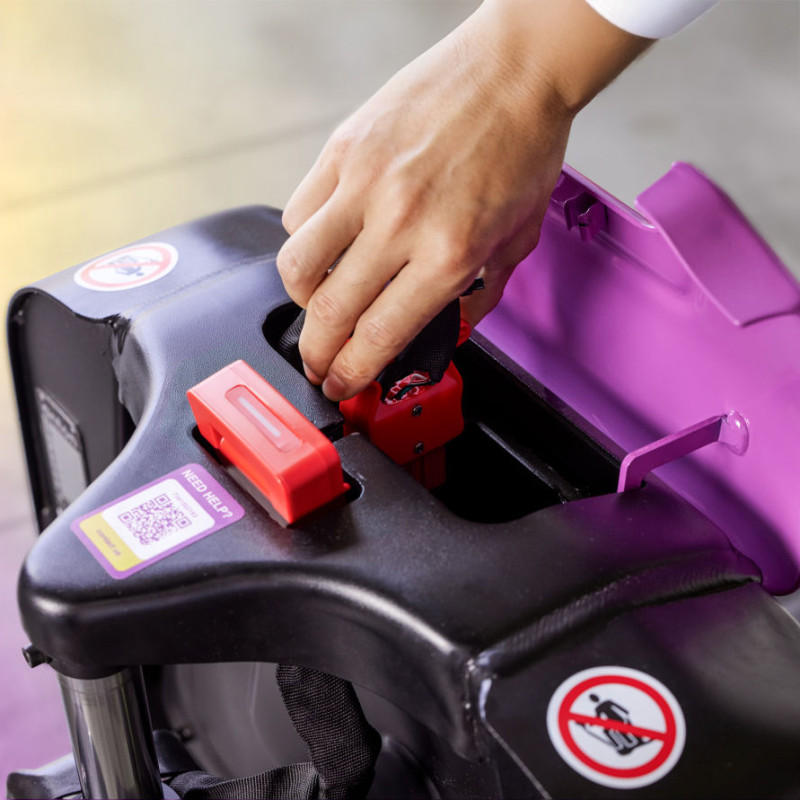

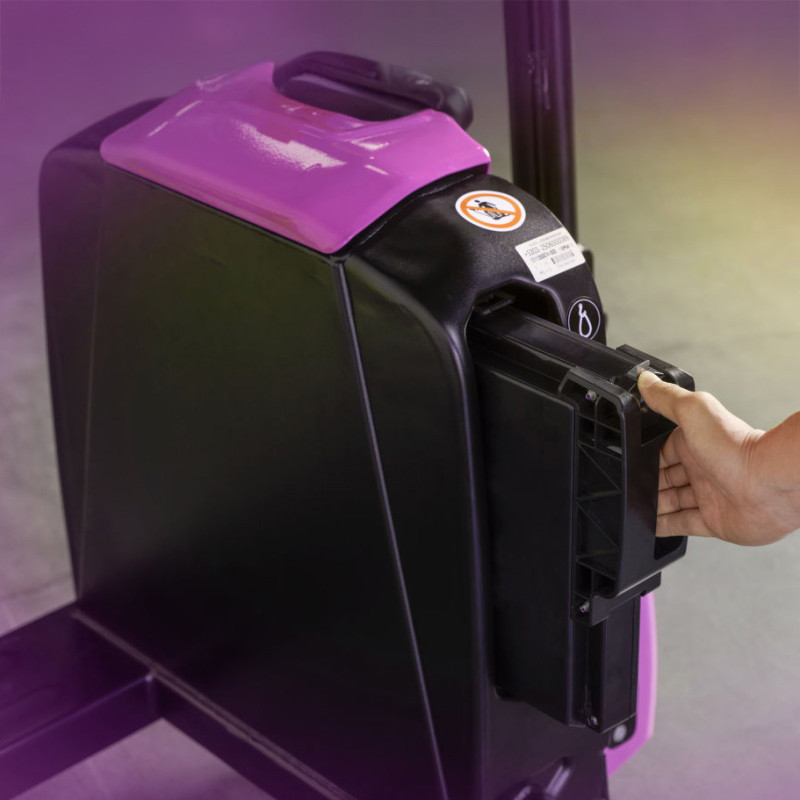

  • Effortless battery exchange thanks to practical plug-in system.
  • Simple self-service with video guides.

Cost-effective Strong performance at a smart price.

  • Cost-effective to buy and operate.
  • Enduring power with up to 2 x 24 V to 20 Ah removeable lithiumion batteries.
  • Reduces physical strain on the operator and improves workplace efficiency.
  • Robust and durable technology ensures reliable operation.
  • One truck. Many applications.

For technical support, please visit the AntOn by Jungheinrich Service & Support page: www.jungheinrich.ro/anton-service.

Drive mode
Electric
Operation mode
Pedestrian
Load capacity / rated load
1500 kg
Load centre distance
600 mm
Wheelbase
1180 mm
Net weight incl battery
115 kg
Axle load with load front/rear
478 / 1137 kg
Axle load without load front / rear
86 / 29 kg
Tyres
Polyurethane
Number of front / rear wheels
1x + - / 4
Tyre size, front
Ø210 x 70
Tyre size, rear
Ø80 x 61
Tread width, rear
535 mm
Lift
105 mm
Height, lowered
82 mm
Height of tiller in drive position min / max
645 / 1145 mm
Overall lenght
1550 mm
Overall width
695 mm
Fork dimensions
55 / 150 / 1150 mm
Width across forks
685 mm
Ground clearance centre of wheelbase
27 mm
Aisle width (pallet 1000×1200 sideways)
2160 mm
Aisle width (pallet 800x1200 length)
2025 mm
Turning radius
1360 mm
Travel speed, laden / unladen
4 / 4.5 km/h
Lowering speed, laden / unladen
0,06 / 0,04 m/s
Max. gradeability laden / unladen
6 / 16 %
Drive motor, performance S2 60 min
0.75 kW
Lift motor, performance with S3
0,5 kW
Sound pressure level at operator's ear as per EN 12053
74 dB (A)
Charger
24 V / 10 A
  • NEW
  • NEW
  • AntOn by Jungheinrich Electric pedestrian pallet truck PTL 1.5, 685x1,150 mm

    Quickly available to meet urgent demand.

    • Lithium-ion technology for fast charging and consistent performance.
    • High spare parts availability provides reduced downtime.
    • Always robust, reliable and flexible.
    • Quickly available to meet urgent demand.

    Lei5,231.66
    Tax excluded
    €990.00
    52539307
    Status: Out of stock
