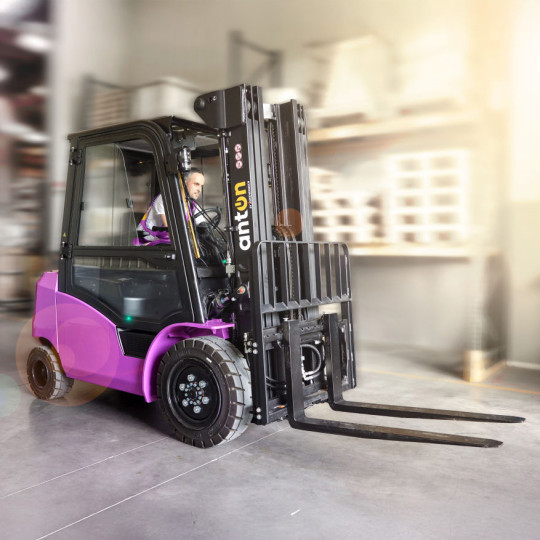

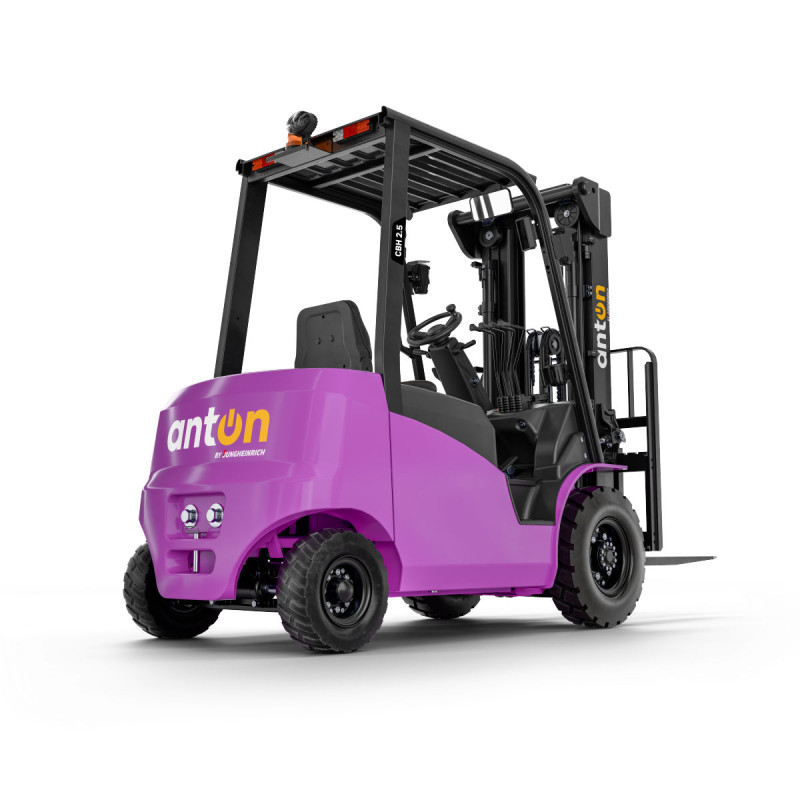

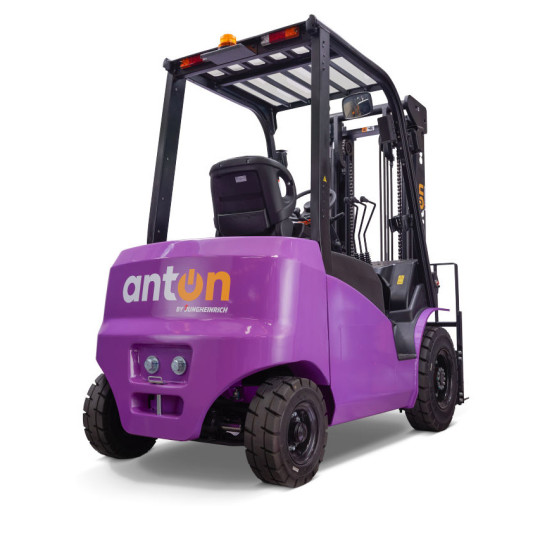

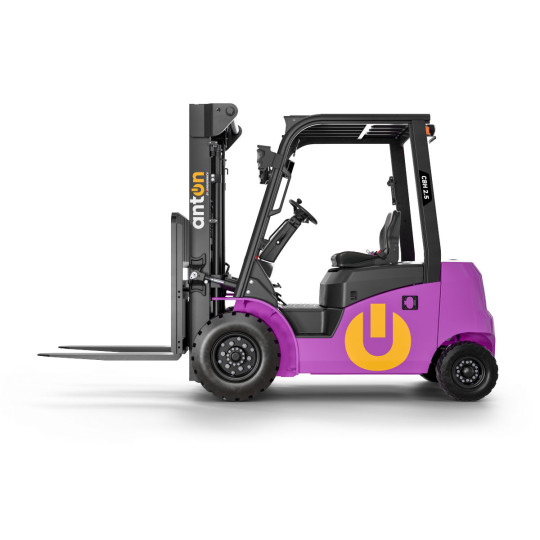

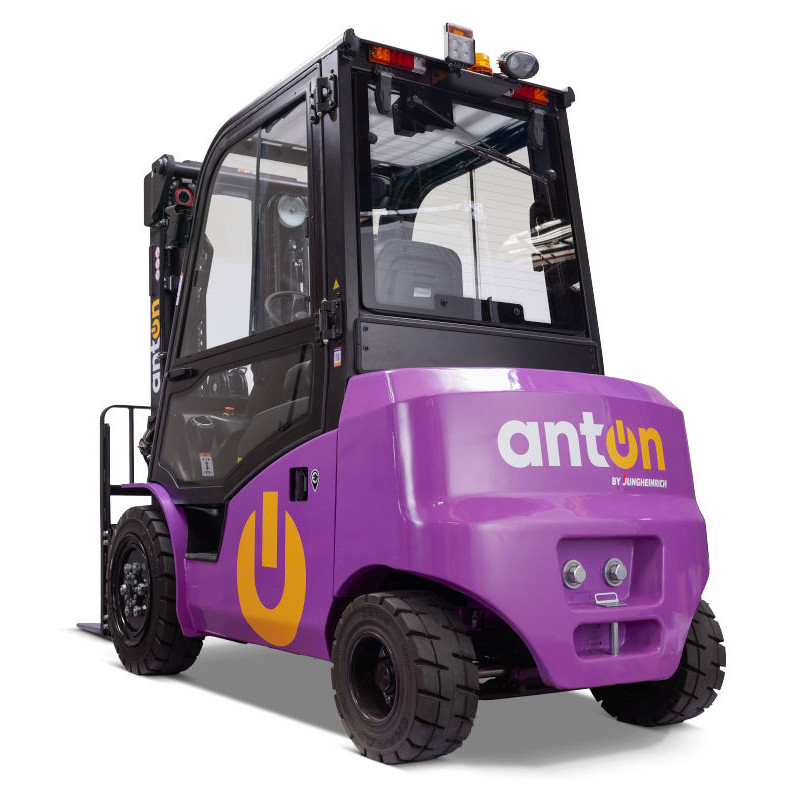

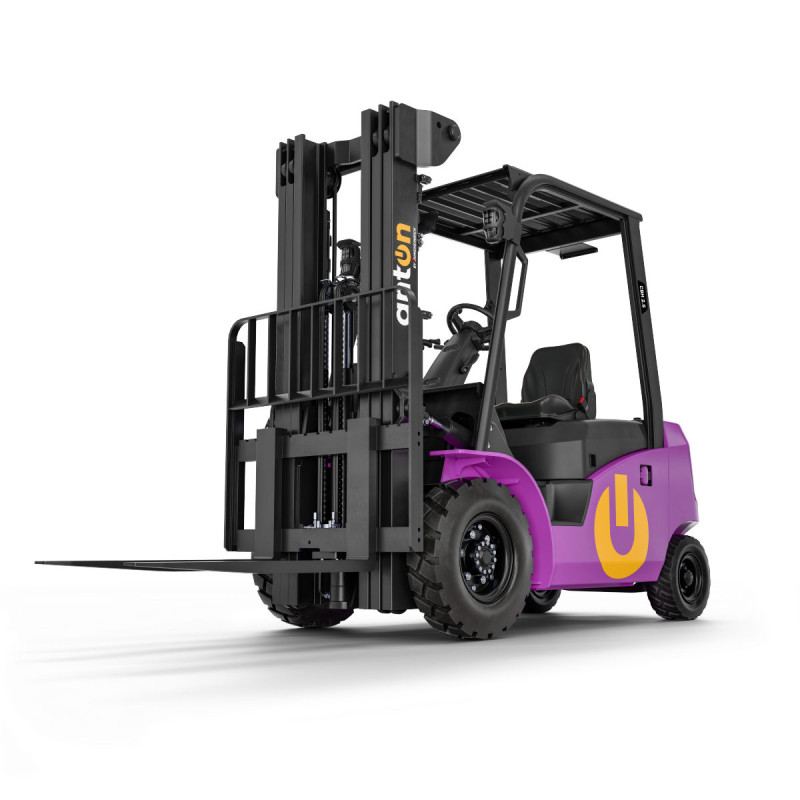

Electric forklift - CBH 3.0 | Mast 3300mm | AntOn by Jungheinrich

Description

Built for use in changing environments.

The AntOn by Jungheinrich CBH electric forklift truck combines what counts for daily operation: robust technology, easy handling and reliable performance. Whether in the warehouse, outdoors or at the loading ramp: the CBH is versatile and delivers exactly where it is needed. This electric forklift truck will always make your job easier – from internal transport, manoeuvrable applications in confined spaces and the rapid loading and unloading of HGVs. It excels not only in daily use but also through its fast availability and a price/performance ratio that makes transitioning to electromobility particularly appealing. With three carefully designed equipment variants and advanced lithium-ion power, the CBH offers exactly the flexibility your company needs today, making the choice easy – a forklift truck that simply works.

Versatile Functional power for every job.

Two capacity options, each available in three equipment variants to match different applications, needs and budgets.
Compact and highly manoeuvrable – even in tight spaces.
Large tyres and high ground clearance for outdoor use on uneven ground.
Flexible charging options via an external or built-in charger, depending on the model.
Travel speeds up to 17 km/h for more efficient working.

Straightforward Intuitive technology that makes work easier.

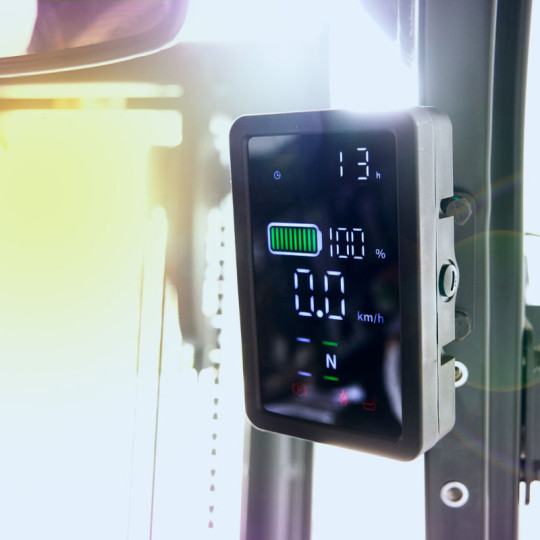

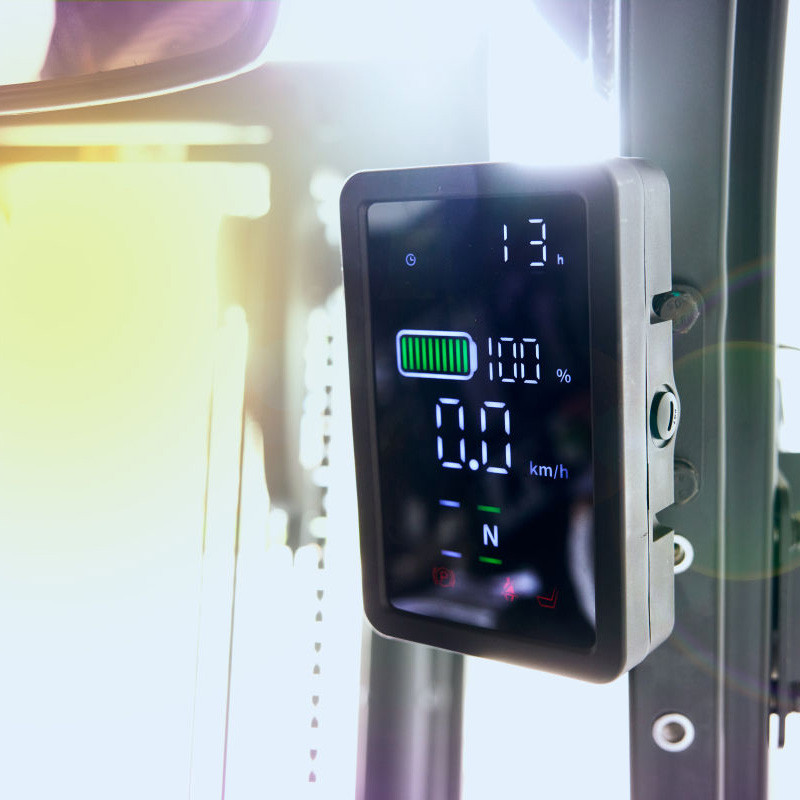

LED display with all key info at a glance.

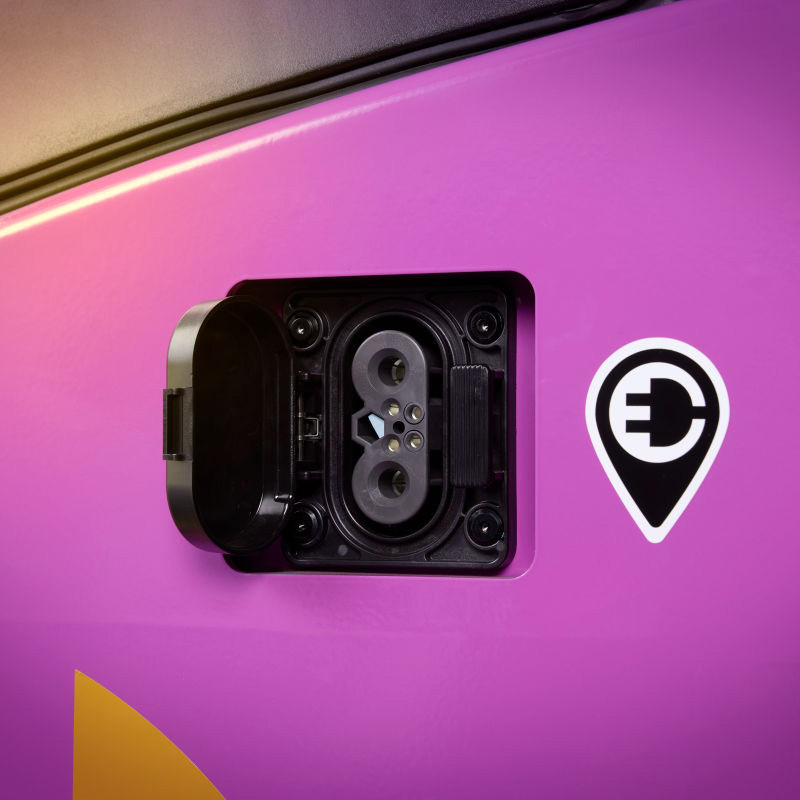

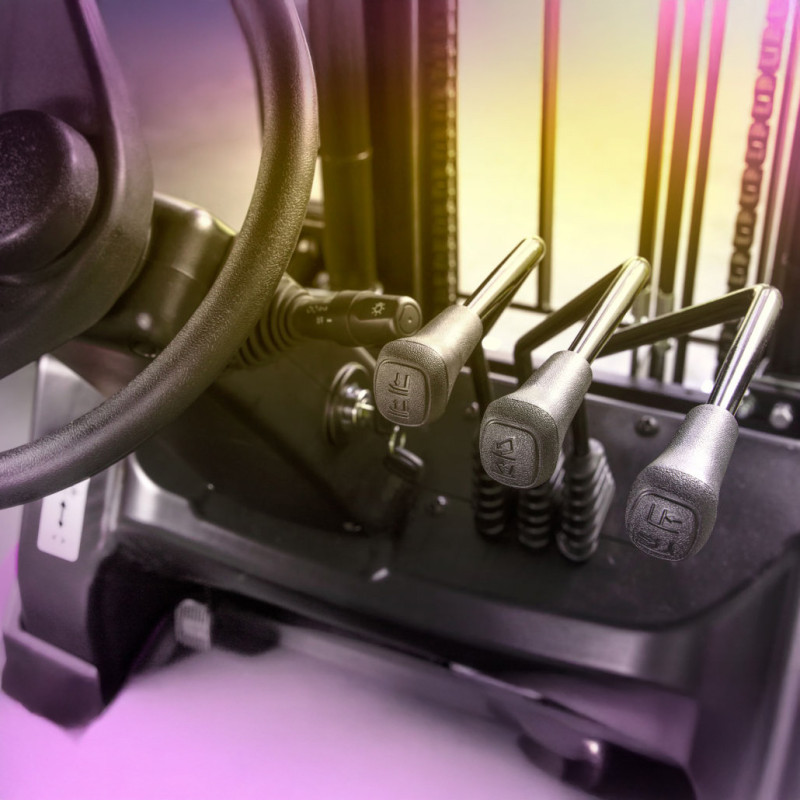

Simple control elements – from the control panel and comfortable pedal to the water-resistant charging port.
Optimum visibility for safer daily operation.

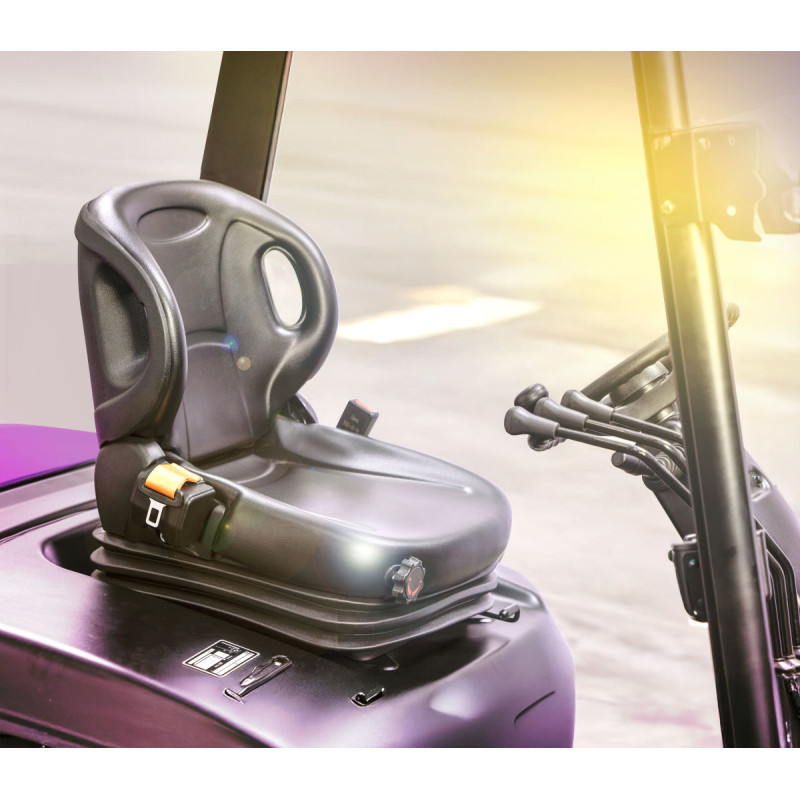

Ergonomic operator position with adjustable steering wheel and, depending on the variant, comfort seat andgenerous legroom.

Cost-effective Solutions for every task and every budget.

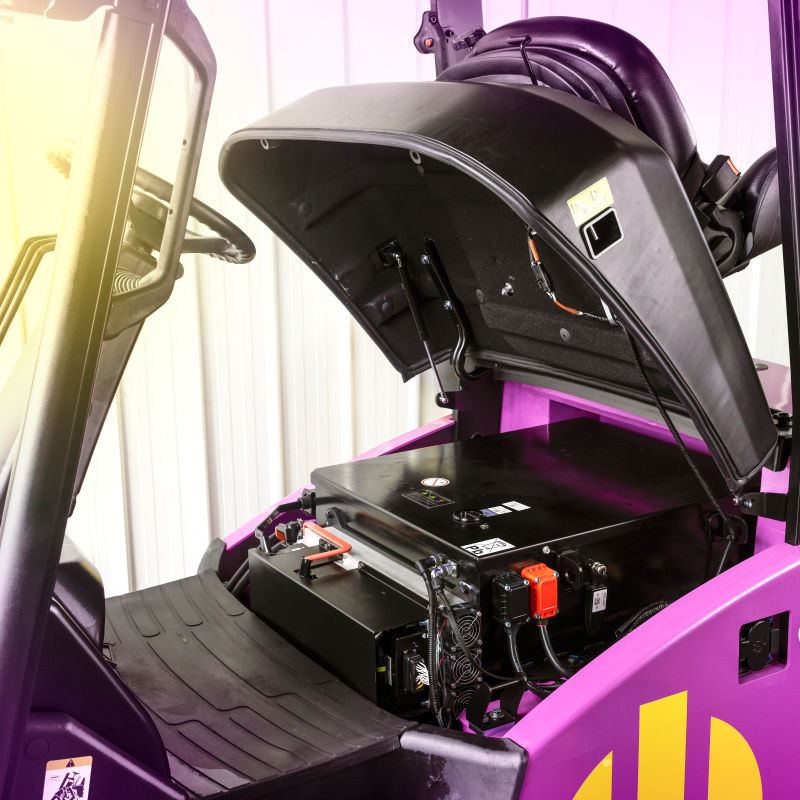

Maintenance-free 80-V lithium-ion battery for long service life and short charging pauses.
Rapid lift speeds save time with every application.
High availability and cost-efficient acquisition.
Fast spare parts supply keeps your operations running smoothly.

For technical support, please visit the AntOn by Jungheinrich Service & Support page: www.jungheinrich.ro/anton-service.

Product Details

Manufacturer: Jungheinrich
Model: CBH 3.0
Mast type: 3300 ZT
Drive mode: Electric
Load capacity / rated load: 3000 kg
Load centre distance: 500 mm
Wheelbase: 1740 mm
Net weight incl battery: 4335 kg
Axle load with load front/rear: 760 / 6575 kg
Axle load without load front / rear: 1880 / 2455 kg
Tyres: Super-elastic (SE)
Number of front / rear wheels: 2x / 2
Tyre size, front: 28x9-15
Tyre size, rear: 200/50-10
Tread width, front: 1010 mm
Tread width, rear: 955 mm
Forward/backward tilt of mast: 6 / 10 °
Lift: 3000 mm
Retracted mast height: 2070 mm
Free lift: 135 mm
Extended mast height: 4095 mm
4430 mm
Overall lenght: 3712 mm
Overall width: 1210 mm
Fork dimensions: 45 / 122 / 1150 mm
Ground clearance centre of wheelbase: 185 mm
Ground clearance laden under mast: 130 mm
Aisle width (pallet 1000×1200 sideways): 4060 mm
Aisle width (pallet 800x1200 length): 4260 mm
Turning radius: 2379 mm
Travel speed, laden / unladen: 16 / 17 km/h
Lift speed, laden / unladen: 0,42 / 0,5 m/s
Lowering speed, laden / unladen: 0,43 / 0,44 m/s
Drawbar pull laden: 2270 N
Max. drawbar pull laden/ unladen: 16280 / 16280 N
Gradeability, laden / unladen: 12 / 23 %
Max. gradeability laden / unladen: 20 / 25 %
Acceleration time laden/unladen: 6,7 / 6,3 s
Service break: hydraulic
Drive motor, performance S2 60 min: 17 kW
Lift motor, performance with S3: 26 kW
Battery voltage / nominal capacity: 80V / 230 Ah
Energy consumption according to VDI cycle: 10,01 kWh/h
Sound pressure level at operator's ear as per EN 12053: 74 dB (A)
Battery type: Li-ion
Charger: 80 V / 60 A
80 V / 100 A

Attachments

CBH 2.5 - 3.0 spec sheet (3.55MB)

NEW

AntOn by Jungheinrich Electric forklift CBH 3.0, ZT3300, ISS (integrated sideshift) , ZH1

Name: AntOn by Jungheinrich Electric forklift CBH 3.0, ZT3300, ISS (integrated sideshift) , ZH1
Brand: AntOn by Jungheinrich
SKU: 52536543
Price: 121538.22 RON
Availability: InStock
